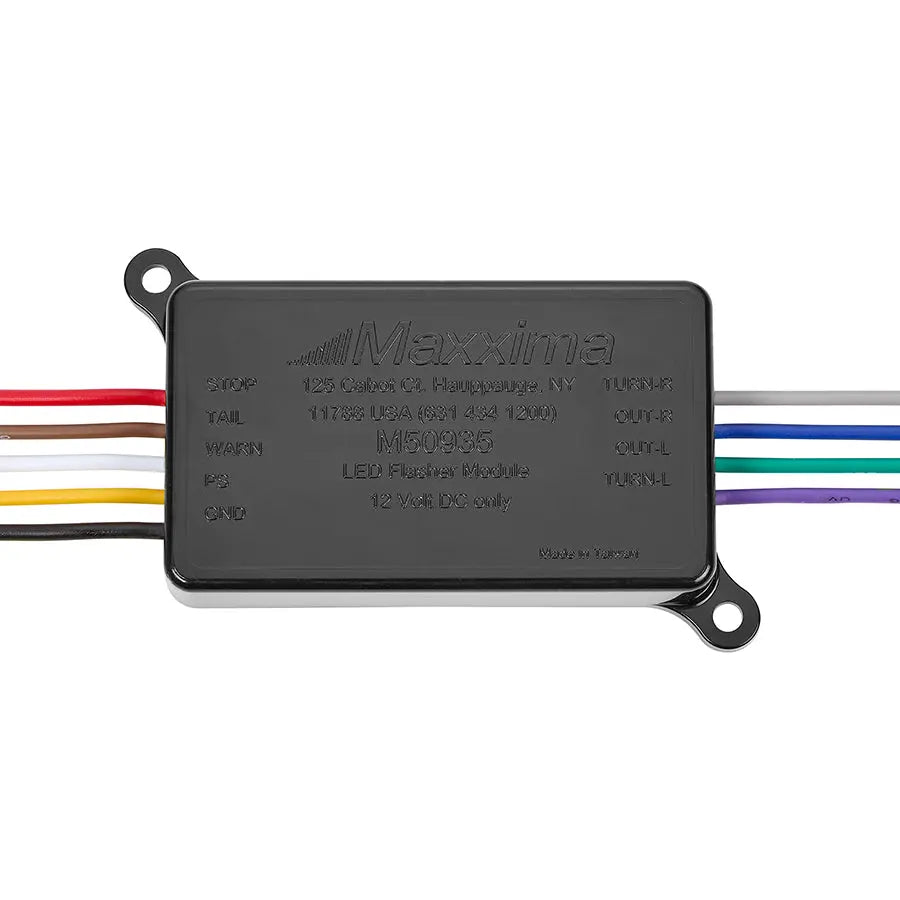

LED Flasher Control Module with HI / LOW Output, 28 Flash Patterns

The M50935 Multi-Function Programmable Flasher & Auxiliary Stop/Turn/Tail Module offers versatile control for your lighting system. This module can be used as a flasher, or to integrate an auxiliary light as a 3rd brake light into your stop/turn/tail (S/T/T) circuit. It supports high/low intensity modes, with 4 selectable brightness levels for the tail light, and provides the ability to convert a 4-wire S/T/T circuit into a 3-wire S/T/T configuration. It’s the ideal upgrade from the M50910 featuring 28 programmable flash patterns and up to 4 memory slots, allowing for easy customization. The flasher is capable of handling 12-amp maximum output (6A per channel). Easy to install with surface mounting and 2 screws, the module is backed by a 1-year warranty for peace of mind.

FEATURES & BENEFITS

• Multi-Function Programmable Flasher and Aux. Stop / Turn / Tail Module with High / Low Output
• 28 Programmable Flash Patterns
• Up to 4 Memory Slots, or Modes, Available
• As Flasher, 12 Amp Max Output − 2 Channels, 6A Per Channel
• Stop / Turn / Tail Outputs Allow Aux. Lighting Device with 2-Wires to be Connected to Vehicle S/T/T Circuit and Will Illuminate Aux. Light in Low Intensity with Tail Lights and High Intensity for Stop or Turn Functions
• In Stop / Turn / Tail Configuration, the Low Intensity (Tail Light Circuit) has 4 Selectable Brightness Levels: 5%, 15%, 30%, or 50%
• Can Also be Used to Convert a 4-Wire Stop / Turn / Tail Circuit to a 3-Wire Stop / Turn / Tail Circuit (A dedicated turn wire and dedicated stop wire converted to a common stop/turn/tail wire)
• Surface Mounts with 2 Screws
• NO RELAY or DIODE Needed
• 1 Year Warranty

SPECIFICATIONS

• Voltage 12.8VDC
• Max Amp Capacity 12A (2 Channels, 6A ea)
• Dimensions 3.2” W x 1.9” H x 0.6”D
• Mounting 2 Hole Surface, 3-7/8” C to C
• Connector 9 Wires Blunt Cut, 11”
